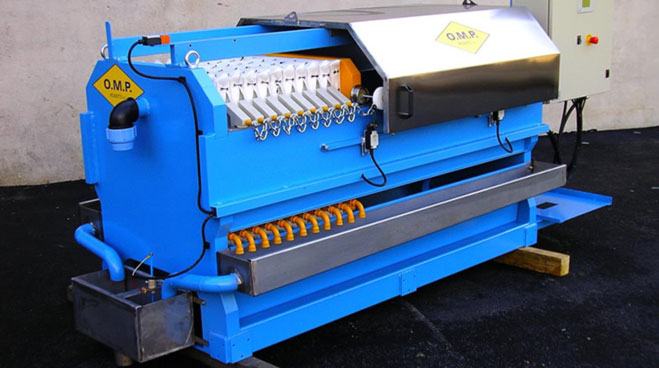

Filter press FP 630

Main technical features:

  • N°1 Frame made of tube 120×80 joined by welds
  • N°2 Box-like fixed heads made in thick sheet, joined by TIG welds
  • N°1 Mobile head having the same characteristic of the fixed ones, sliding on treated steel castors and guides made from the tie rods that connect the fixed heads
  • N°1 Hydraulic cylinder Ø130mm
  • N°1 Hydraulic centraline with 4 kW and maximum pressure of 200 Bar.
  • N°1 Laminar bundle consisting in a minimum of 6 plates with a maximum pressure of 16 Bar, made in polypropylene and coated with polypropylene filtering elements

Plate 630

  • Capacity 115 litres version with 10 plates
  • Capacity 172 litres version with 15 plates
  • Filtering surface 5,6 m2 version with 10 plates
  • Filtering surface 9,1 m2 version with 15 plates
  • Protection cover in stainless steel
  • Command panel control with PLC

Video:

Layout of water treatment plant:

Legenda

1 Clarifier feeding pump
2 Standard clarifier feeding pipeline
3 Flocculant automatic unit / or manual
4 Flocculant dosing pump & pipeline
5 Clarifier
6 Clean water storage feeding pipeline
7 Clean water storage unit
8 Standard clean water discharge
9 Clean water booster system
10 Standard sludge discharge

11 Sludge homogenizer
12 Filterpress feeding pump
13 Filterpress feeding pipeline
14 Filterpress perimetral railing
15 Filterpress
16 Electrical board
18 Coagulant unit
19 Filterpress access stairs
20 Filterpress Platform structure



Width: 1300 mm
Length: 3550 mm
Height: 1200 mm
Net weight: 1884 kg
Adsorbed electric power: 4 kW
Download brochure
